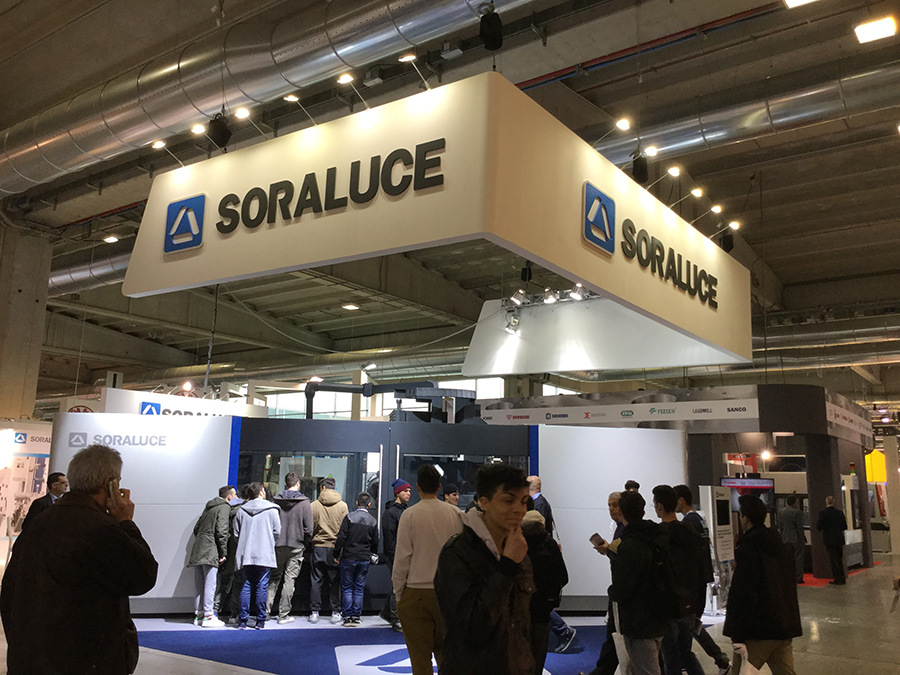

Technological innovation and Industry 4.0, main lines shown by SORALUCE at Mecspe
- SORALUCE presents SORALUCE MONITORING I4.0, a complete monitoring package based on cloud computing
- SORALUCE showcases the SORALUCE TA-A 35, a high capacity machine designed in a compact ergonomic format
- Presentation of the new gantry multitasking SORALUCE PXG: precision and versatility at a large scale
In the Industry 4.0 framework, SORALUCE presents SORALUCE MONITORING I4.0, a comprehensive monitoring package which provides an improved machine performance and increase in process productivity, reducing operating costs.
- SORALUCE presents SORALUCE MONITORING I4.0, a complete monitoring package based on cloud computing
- SORALUCE showcases the SORALUCE TA-A 35, a high capacity machine designed in a compact ergonomic format
- Presentation of the new gantry multitasking SORALUCE PXG: precision and versatility at a large scale
In the Industry 4.0 framework, SORALUCE presents SORALUCE MONITORING I4.0, a comprehensive monitoring package which provides an improved machine performance and increase in process productivity, reducing operating costs.
SORALUCE MONITORING I4.0 includes features such as the displaying of the machine status in real time with relevant information on the situation of the machining tooling in progress and the sending of emails in the case of a shutdown; the generation of reports on sensitive issues for the user such as production or process, such as energy consumption or the performance of the machining cycles; and the diagnosis of key warning signs for the maintenance of the facilities. This is all carried out by means of secure connections using a PC or any mobile appliance with simple web access to Internet.
SORALUCE TA-A 35 Milling Machine
SORALUCE will showcase the SORALUCE TA-A 35, a bed type milling machine, distinguished by its optimum stiffness and mechanical stability, providing high stock removal capacity. It is notable for its long-lasting precision, resulting from a strict design and assembly process and the unique mechanical features of the cast iron. Equipped with lineal guiding system in all axes, it provides immense stability eliminating any vibration during machining processes.
The machine design and configuration bring the customer important improvements in maintenance, ergonomics, high dynamics and safety in the work environment.
SORALUCE TA-A bed type milling centre is a heavy machine compared to other bed type milling centres on the market, supports workpiece loads up to 7800 kg.
The machine has a table area of 3700 x 1000 mm, 1200 mm vertical traverse, 1250 mm cross traverse and 28 kW spindle power at 4000 rpm. It is equipped with automatic tool changing system and tool magazine for 40 tools. The high torque allows high-performance machining results.
The SORALUCE TA-A 35 model is highly flexible thanks to the automatic universal head indexing at 2,5ºx2,5. The machine is equipped with a full peripheral enclosure with two sliding doors at the front and one at the back on the left, providing easy access to the work area from the front and rear.
It is the ideal machine for high precision mould and die manufacturers and medium sized precision engineering workpieces, ensuring highest precisions and efficiency.
Additionally the machine incorporates the latest technologies developed by SORALUCE such as Accura Heads, SSV and Adaptive Control for the highest precision and productivity results.
